Kolo Academy Grade 3 Red 16" - 2024

• Wheel size: 16”
• Seat tube length: 255mm
• Seat angle: 68,0°
• Frame head tube length: 100mm
• Steering angle: 70,0°
• Horizontal top tube length: 397mm
• Length of lower triangle: 280mm
• Wheelbase: 676mm
• Minimum saddle height: 490mm
• Maximum saddle height: 570mm
• Crank arm length: 100mm

Technical details:

• Rims: 16“ x 1.5” x 16H, aluminum, black
• Rear hub: Aluminum, 14G/16H, black
• Front hub: Aluminum, 14G/16H, black
• Wheel size: 16”
• Tires: VEE TYRE Rail 16 “x1.50 (40-305), Skinwall Synthesis, reflective stripes, 90 TPI
• Fork: Aluminum
• Grips: Black
• Handlebar: BMX style 470 mm
• Seatpost: 25.4mm aluminum
• Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread
• Freewheel 1-speed
• Crank mechanism. ACADEMY 25T, 100mm, aluminum
• Gears: 15T

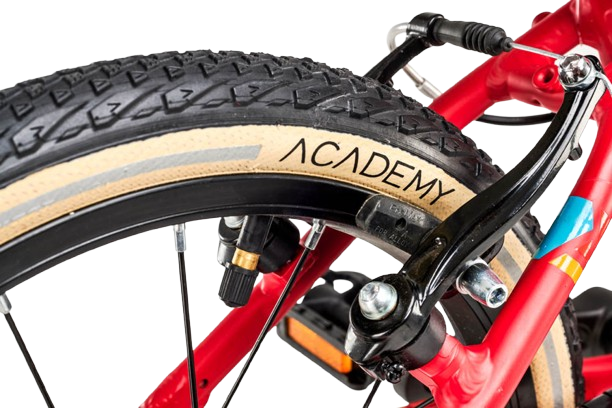

• Front brake: V-type brake, aluminum
• Rear brake: V-type brake, aluminum
• Brake lever: Composite, black
• Weight: 5.50 kg
• Frame shape: Diamond kink
• Frame height: 26cm
• Frame material: Triple shaded aluminum
